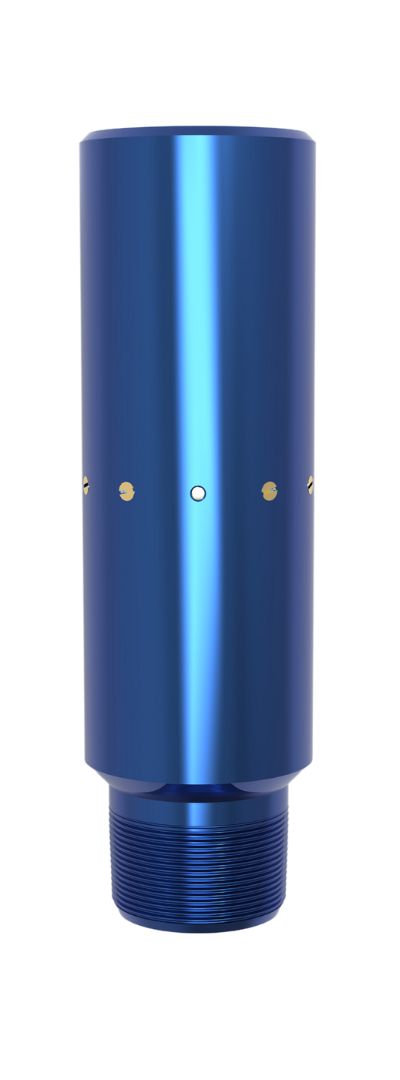

SpectraMax Pump Out Plug

The SpectraMax Pump Out Plug is designed to isolate the tubing from the annulus by being installed at the bottom of the tubing string. It can be easily removed by applying pressure, which dislodges the plug to allow full opening. Its pressure value is adjustable in the field by adding or removing shear screws. A ball seat version is also available.

Key Features:

Available Configurations: With or without ball seat
Pressure Control: Adjustable pumpout pressure by shear screws
Installed at the bottom of tubing string
Isolates tubing from annulus
Adjustable pumpout pressure via shear screws
Ball seat option available

Advantages:

Applications:
