Maximus OIGA - SpectraMax Permanent Wireline Set Sealbore Packer
Sealbore Packers Accessories

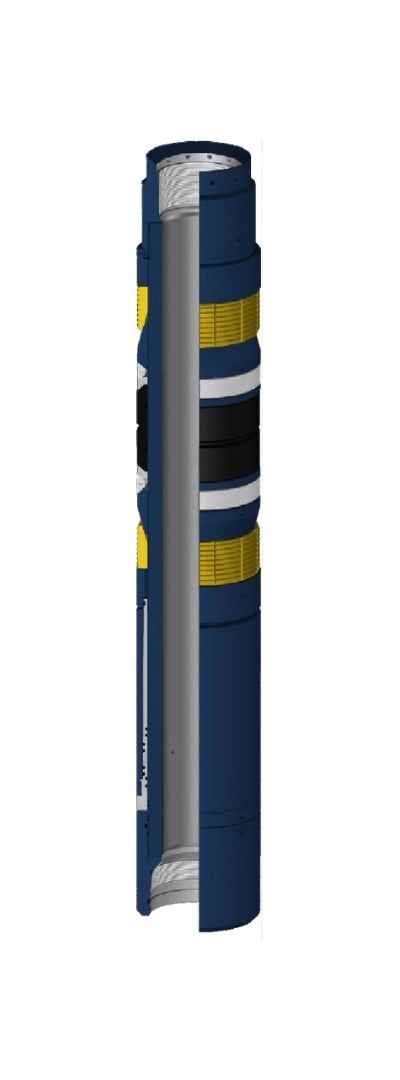

SpectraMax Permanent Wireline Set Sealbore Packer
The SpectraMax Permanent Wireline Set Sealbore Packer is designed for single or multiple zone completions in straight to highly deviated wellbores with high differential pressure. It can be set on wireline using the appropriate adapter kit or a MaxForce hydraulic setting tool. The packer features full strength, full circle ductile cast iron slips for even load distribution and maximum reliability.
Key Features:
- Pressure Rating: 10,000 psi
- Temperature Rating: 350°F
- Available Sizes: 51/2", 7", 75/8", 95/8"
- Casing Sizes: 5.012" to 8.681" (various depending on size)
- Metallurgy: Elastomers available for hostile environments (Nitrile, HNBR, HSN, Viton, Aflas)
- Sealbore Sizes: 2.350" to 4.750" (depending on model)
- Weight Ranges: 14.0 PPF to 53.5 PPF (varies by casing size)
- Rated to 10,000 psi and 350°F
- Compatible with wireline, electric line, hydraulic, or mechanical setting tools
- Can function as a lowerzone isolation packer using a knockout sub
- Allows tubing removal and insertion as needed
- Fullcircle slips for faster run times
- Antiextrusion rings to prevent rubber extrusion
- Easy setting in P110 Grade Casing without the need for carbide insert slips
Advantages:
Applications:
