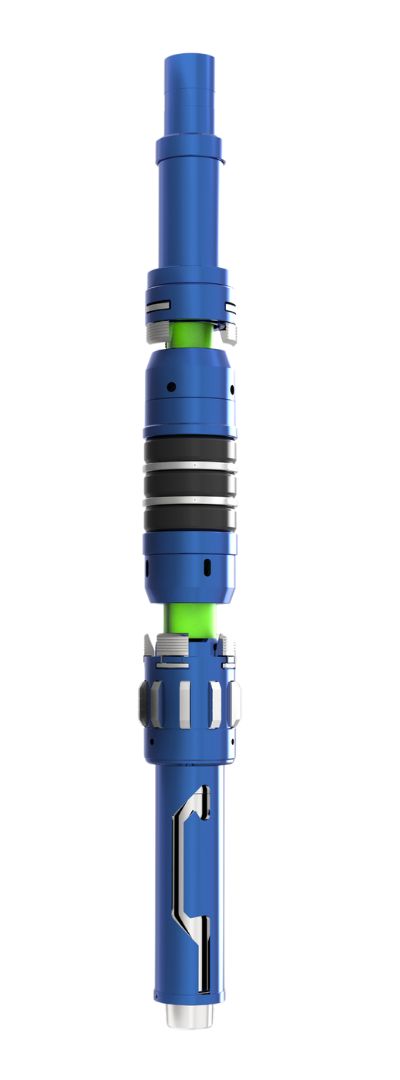

SpectraMax Set IX Mechanical Set Packer
The MaxSet IX is a mechanical set, double grip packer designed for production and testing. It can be left in tension, compression, or a neutral position, holding pressure from above and below. It is equipped with a large internal bypass to reduce swabbing and enhance reliability during run in and retrieval.
Key Features:
- Pressure Rating: Up to 10,000 Psi
- Temperature Rating: Up to 350°F
- Available Sizes: Casing from 5” to 103/4”
- Metallurgy: L80, 9Cr, 1 Moly, 13Cr
- Quarterturn setting mechanism
- Emergency shear release with 50,000 lbs rating
- Can hold pressure from both above and below
- Compatible with P110 casing
Advantages:
- Highly reliable for highpressure applications
- Ideal for deviated wells
- Flexible positioning options (tension, compression, or neutral)
Applications:
- Suitable for highpressure wells
- Used in production and testing completions
