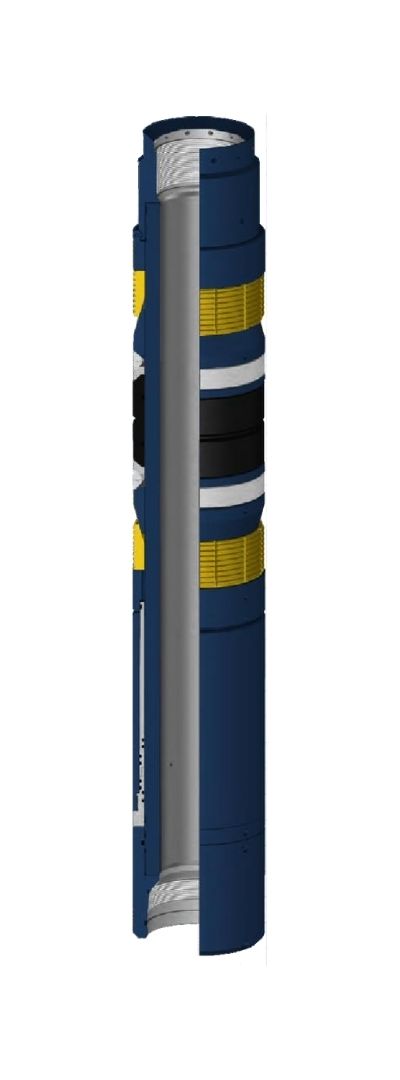

SpectraMax Permanent Hydraulic Set Sealbore Packer
The SpectraMax Permanent Hydraulic Set Sealbore Packer is designed for single or multiple zone completions in straight to highly deviated wells with high differential pressures. It can be set on tubing with an anchor latch inserted into the sealbore, enabling single trip completion. The packer features ductile cast iron full strength, full circle slips for load distribution, ensuring maximum load rating and reliability.
Key Features:
- Pressure Rating: 10,000 psi
- Temperature Rating: 350°F
- Available Sizes: 51/2", 7", 75/8", 95/8"
- Casing Sizes: 5.012" to 8.681" (various depending on size)
- Metallurgy: Materials and elastomers available for hostile environments (Nitrile, HNBR, HSN, Viton, Aflas)
- Sealbore Sizes: 2.350" to 4.750" (depending on model)
- Weight Ranges: 14.0 PPF to 53.5 PPF (varies by casing size)
- Rated to 10,000 psi and 350°F
- Ideal for highpressure production or testing
- Suitable for fracture stimulations
- Lowerzone isolation via knockout sub (can function as a bridge plug)
- Allows for multiple tubing removal and reinsertions
- Easy setting in P110 Grade Casing, removing the need for carbide insert slips
- Antiextrusion rings to prevent rubber extrusion
- Keyed components for easy milling
- Fullcircle slips ensure fast run time
Advantages:
Applications:
