Lock Mandrels

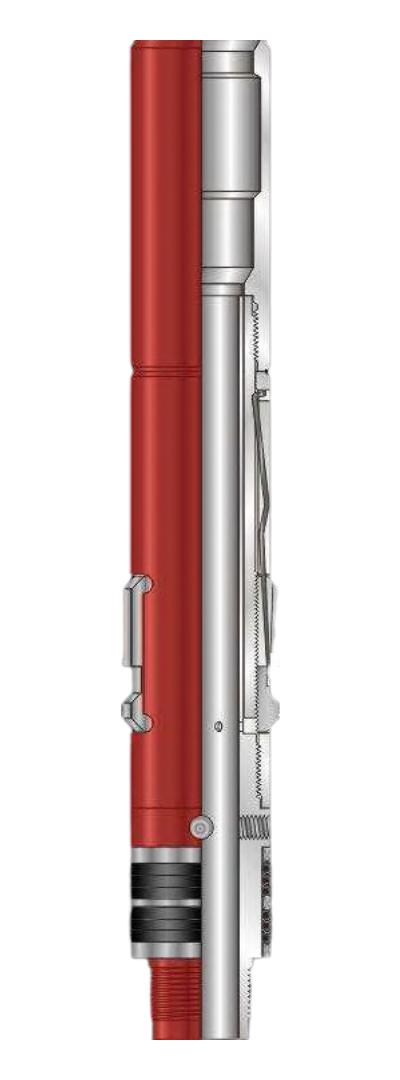

SpectraMax MX Lock Mandrel

The SpectraMax MX Lock Mandrel is a selective locking device designed to be used with MX series landing nipples. It provides secure engagement and retention of flow control tools inside production tubing. Featuring a robust design with non elastomeric seal stacks, it is built to perform in both standard and sour well environments, effectively resisting high temperature and high pressure (HTHP) conditions.

Key Features:

Seal Bore I.D.: 2.313", 2.750", 2.813", 3.688", 3.813"
Metallurgy: L80, 9Cr 1Mo, 13Cr 80Ksi (NACE MR0175)
Selective locking mechanism compatible with MX series nipples
Nonelastomeric seals for HTHP and sour well environments
Chevron Vseals for reliable sealing performance

Advantages:

Withstands extreme well conditions, ensuring longlasting tool deployment
Provides secure, reliable locking in production wells
Adaptable to various wellbore sizes

Applications:

Ideal for production wells requiring selective locking of flow control tools in hightemperature, highpressure, and sour well environments
