Float Equipment

Maximus Float Equipment ensures efficient cementing of casing in oil and gas wells. Designed to enhance well integrity, it effectively controls cement flow and prevents backflow during cementing operations.

Flow Control: Float shoes and collars manage cement flow and prevent backflow
High-Pressure Resistance: Built to withstand high pressures and diverse conditions.
Wellbore Integrity: Crucial for maintaining integrity during critical cementing stages.
Precision Engineering: Reliability, durability, and efficiency in challenging environments.

Variant 1

SpectraMax Stab In Cement Float ShoeCollar


SpectraMax Stab In Cement Float Shoe/Collar

Utilized for inner string cementing applications, recommended where reciprocation of casing isn't required. Ideal for use with Latch Down Drill Pipe Wiper Plug. PDC drillable and requires stab in stinger. ...

Variant 2

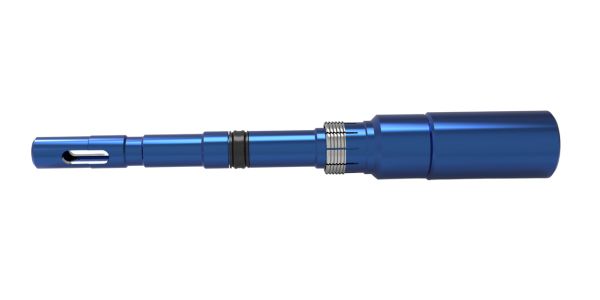

SpectraMax Stab In Stinger Sub

Designed to stab into the float equipment directly without rotation. The stinger is removed by lifting the drill string, making it an efficient choice for operations where ease of installation and removal is critical. ...

Variant 3

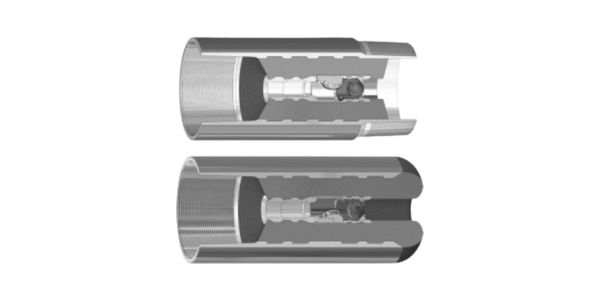

SpectraMax Auto Fill Cement Float ShoeCollar


SpectraMax Auto Fill Cement Float Shoe/Collar

Designed with a single flapper valve, which allows the casing to fill during running. Conversion to a one way check valve is done by dropping a ball and applying pressure, making it ideal for efficient cementing operations. ...

Variant 4

SpectraMax Cement Float Collar

Fitted with API RP 10F CAT IIIC qualified valve, available with single or double valve options. Tightly controlled cementing process ensures high compressive strength and pressure retention. ...

Variant 5

SpectraMax Cement Float Shoe

Cement filled shoe fitted with an API RP 10F CAT IIIC qualified valve, available with various nose types (eccentric, concentric, spade) and is designed for primary cementing applications with enhanced cementing efficiency. ...

Variant 6

SpectraMax Cement Guide Shoe

The guide shoe features a large nose orifice for easy passage of debris and casing in cementing applications. Designed for running casing in difficult well bores and has a load bearing capability for setting the casing on bottom. ...

Variant 7

SpectraMax Differential Cement Float ShoeCollar


SpectraMax Differential Cement Float Shoe/Collar

Equipped with a valve controlled by differential pressure across the valve assembly, it allows the casing to be circulated until the conversion ball is dropped, after which it functions as a conventional one way check valve. ...

Variant 8

SpectraMax Non-Rotating Cement Float Collar


SpectraMax Non Rotating Cement Float Collar

Fitted with a non rotating insert to be used with non rotating plugs. It includes high flow phenolic float valves and is designed for high pressure cementing operations with compressive strength and pressure retention capabilities. ...

Variant 9

SpectraMax Reamer Shoe - 01

SpectraMax Reamer Shoe 01

Specifically designed to aid in running casing or liners in problematic wells. Equipped with tungsten carbide cutting structure and an eccentric guide nose to navigate difficult wellbore conditions. ...

Variant 10

SpectraMax Reamer Shoe - 02

SpectraMax Reamer Shoe 02

A robust shoe for reaming through difficult formations, fitted with tungsten carbide blades and an eccentric nose. Specifically designed for wells requiring rotational or reciprocation operations during casing installation. ...
