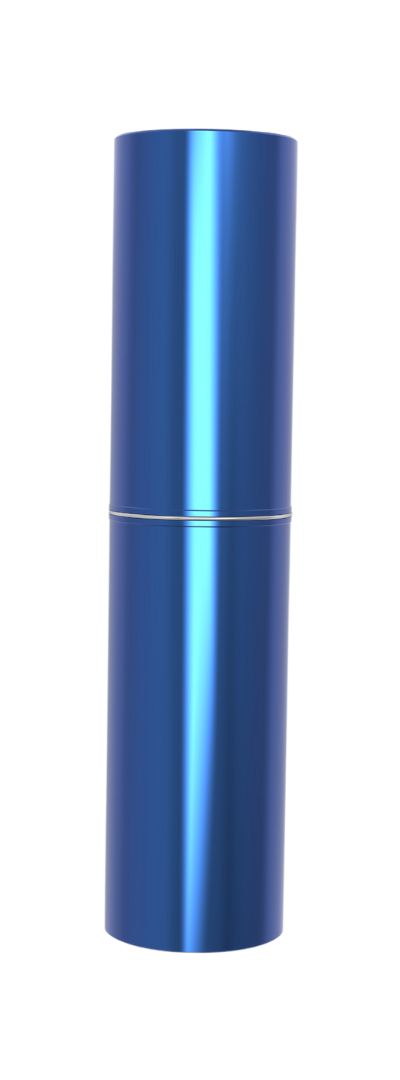

SpectraMax Setting Sleeve (MSS N)

The SpectraMax Setting Sleeve (MSS N) is a non rotating setting sleeve designed for liner hanger systems. It provides a stable and secure connection, ensuring smooth operations in high angle or horizontal wells.

Key Features:

31/2” to 20”
Nonrotating setting mechanism
Designed for highangle wells
Compatible with hydraulic liner hangers

Advantages:

Applications:
