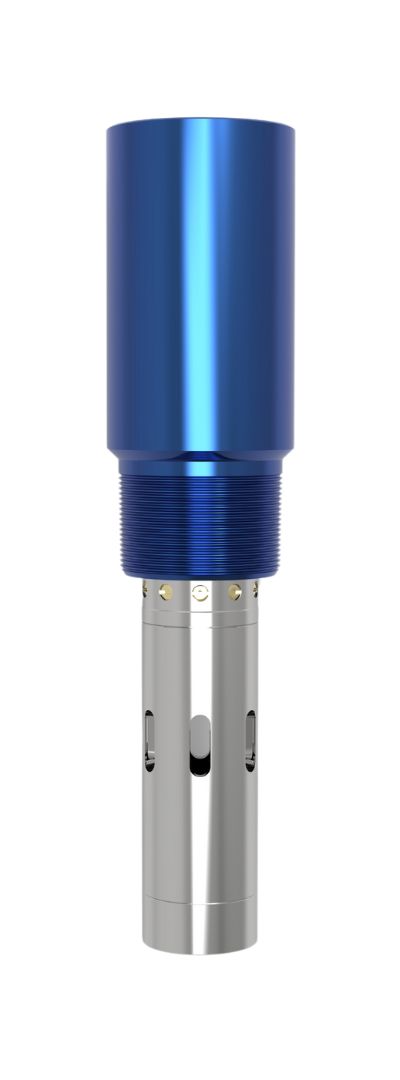

SpectraMax Hydraulic Landing Collar With Ball Catcher

The SpectraMax Hydraulic Landing Collar with Ball Catcher is used for setting liner hangers, ensuring proper pressure application for cementing.

Key Features:

31/2" to 20"
Adjustable shear rating
Incorporates a ball seat for controlled pressure application.
Nonrotational mechanism for liner wiper plug engagement.
Adjustable shear rating.

Advantages:

Applications:

SpectraMax Hydraulic Landing Collar With Ball Catcher
